Product Details
Place of Origin: china
Brand Name: HUAKE
Certification: CE SGS
Model Number: Y81-200
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 35-40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 200PCS Per Year
Model NO.: |
Y81-200 |
HS Code: |
84629190 |
Port: |
Shanghai, China |
Specification: |
CE SGS |
Trademark: |
HUAKE |
Origin: |
Jiangsu China |
Application: |
Scrap Copper Recycling Baler / Copper Baler |
Warranty: |
18 Months Life Long Free Consultatncy |
Automatic Grade: |
Full Automatic |
Density Of Bale: |
1800kgs /cbm At Least |
Model NO.: |
Y81-200 |
HS Code: |
84629190 |
Port: |
Shanghai, China |
Specification: |
CE SGS |
Trademark: |
HUAKE |
Origin: |
Jiangsu China |
Application: |
Scrap Copper Recycling Baler / Copper Baler |
Warranty: |
18 Months Life Long Free Consultatncy |
Automatic Grade: |
Full Automatic |
Density Of Bale: |
1800kgs /cbm At Least |

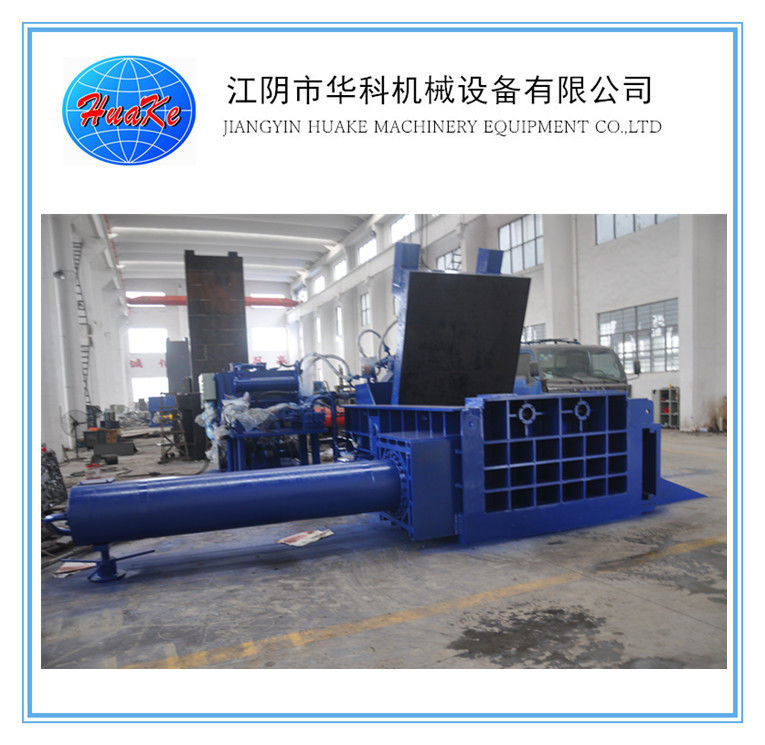

Y81-200 200 tons power hydraulic Scrap Metal Baler packer machine for recycling metal
Brief Introduction of Baling Process

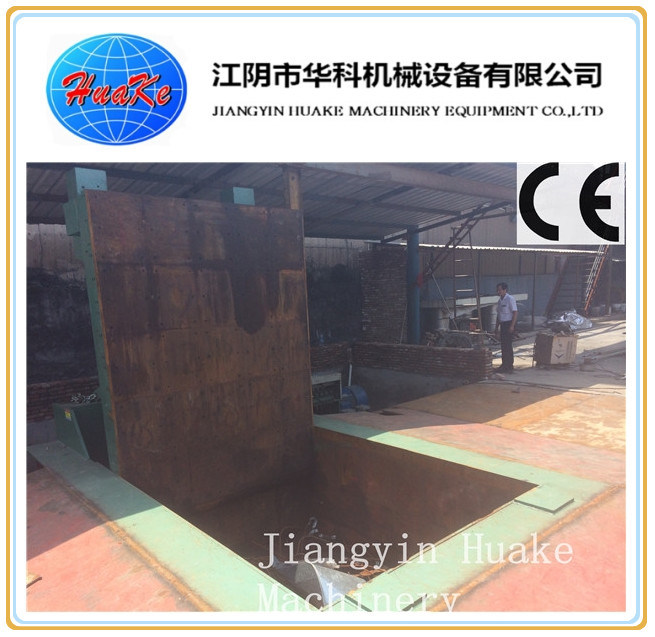

At first, the waste material for baling should be loaded into the compacting box manually or machinically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste mateials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finisheing the baling process.
Related Names
Metal Baler | Scrap Metal Baler | Side Push Out Baler | Scrap Baling Press Machine | Scrap Metal Compactor | Baler for Ferrous and Non Ferrous
Y81-200 Scrap metal Baler
| Technical Specification | ||||||
| Model | Main Cyl. Force | Press Box Size | Bale Size | Bale Weight | Capacity | Motor |
| (Ton) | (mm) | (mm) | (kg) | (bale/hr) | (kw) | |
| Y81-200 | 200 | 1600X1000X800 | 400X400 | 110-130 | 6-12 | 38.65 |
| Y81-200 | 200 | 1600X1200X800 | 400X400 | 130-160 | 6-12 | 38.65 |
| Y81-200 | 200 | 1800X1400X800 | 400X400 | 160-200 | 6-12 | 45.65 |
| Y81-200 | 200 | 1800X1400X800 | Octagon/260 | 30-90 | 6-12 | 45.65 |
| Y81-200 | 200 | 1800X1400X800 | Octagon/300 | 40-100 | 6-12 | 45.65 |
Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or machinically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste mateials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finisheing the baling process.
Related Names
Metal Baler | Scrap Metal Baler | Side Push Out Baler | Scrap Baling Press Machine | Scrap Metal Compactor | Baler for Ferrous and Non Ferrous
Quick Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service : the machine are always tested and assembled before shipping,customer only need to follow simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Model Number: Y81-200
Color: User Defined
typical detailed paramteters
| Item Number | Parameter content | Remarks注 | ||||||||
| 1 |
Master Pressure Cylinder |
Model | YG320/220 | 200tons power | ||||||
|
Nominal Thrust |
2000 KN | Quantity | 1 | |||||||
| 2 |
Side Pressure cylinder |
Model | YG220/160 | 200tons power (120 tons*2) | ||||||
|
Nominal Thrust |
1000 KN*2 | Quantity | 2 | |||||||
| 3 | COVER DOOR Cylinder | Model | YG200/140 | 80tons power | ||||||
|
Nominal Thrust |
800 KN | Quantity | 1 | |||||||
| 4 |
Bale PUSH OUT Cylinder |
Model | YG1250/80 | 50tons power | ||||||
|
Nominal Thrust |
500 KN | Quantity |
1
|
|||||||
| 5 | Material Box Dimension | 1800×1300×800 mm | L×W×H | |||||||
| 6 | Bale size | (400-800 MM)400MM×400mm | L×W×H | |||||||
| Single cycle time | About 120 seconds | |||||||||
| 7 | Electromotor | Model | Y200L2-6 | Rated power | 22KW | |||||
| Rated speed | 980 RPM | Quantity | 2 | |||||||
| 8 | Hydraulic pump | Model | 160YCY14-1B | Rated Pressure | 31.5MPa | |||||
|
Nominal Displacement |
160 ml/r | Quantity | 2 | |||||||
| 9 | Water cooler | Model number | GLC -8 | Cooling effect | 8 sauqre meters | |||||
| 10 | Production rate | 2.5-4.5 tons per hour | ||||||||
| 11 | Machine weight | About 18 tons | ||||||||
