Product Details
Payment & Shipping Terms
Payment Terms: L/C, T/T
Supply Ability: 500 PCS/Year.
Model NO.: |
Y81-160 |
HS Code: |
84629190 |
Port: |
Shanghai, China |
Scrap Steel Baler: |
Y81f-160 |
Transport Package: |
Nude Packing, Loading Container Directly |
Specification: |
CE SGS |
Trademark: |
HUAKE |
Origin: |
China |
Model NO.: |
Y81-160 |
HS Code: |
84629190 |
Port: |
Shanghai, China |
Scrap Steel Baler: |
Y81f-160 |
Transport Package: |
Nude Packing, Loading Container Directly |
Specification: |
CE SGS |
Trademark: |
HUAKE |
Origin: |
China |
| Model | Main Cyl.Force (ton) |
Press Box Size (mm) |
Bale Size (mm) |
Bale Weight (kg) |
Motor (kW) |
| Y81 F - 160 A | 160 | 1600 x1 00 0x 8 00 | 350 x 35 0 400 x 400 | 1 00- 180 | 22 |
| Y81 F - 160 B | 160 | 16 00x 1 200x 8 00 | 35 0x 35 0 400 x 400 | 1 00- 18 0 | 2 x 18.5 |
| Y81F-160C | 160 | 1600 x 900 x 700 | 320 x 320 | 80-130 | 2 x 15 |

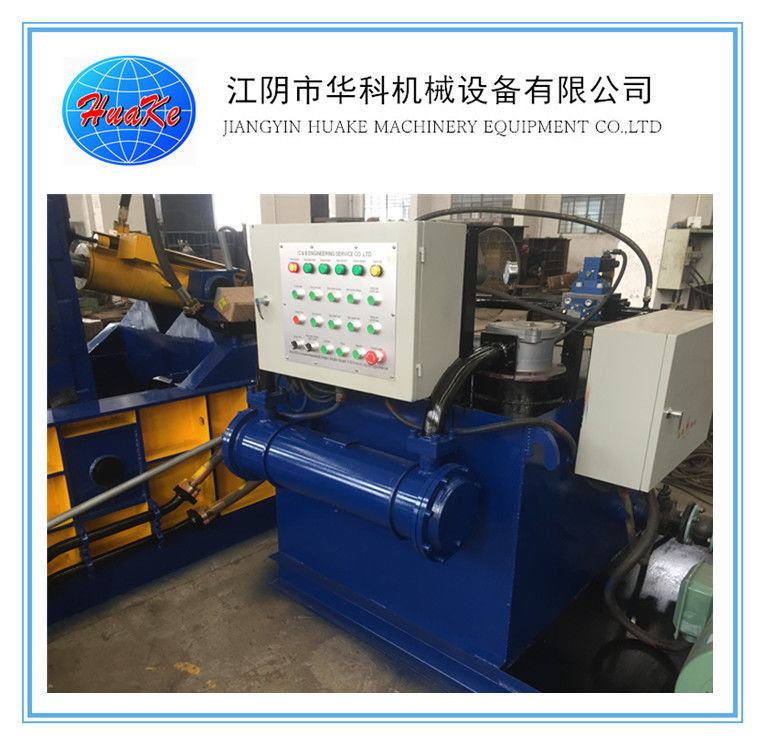

Special Features Of Huake light steel scrap metal balers
1: Reliable structural rigidity with enough weight
2. Cutting blade around lid and chamber box as to process long material
3 Adopt the Japan imported seals to ensure without phenomenon of oil leak and improve the service of the cylinder
4 Adopt the vessel classification of welding process to ensure that machine is more stable
5 Adopt Taiwan brand cooling system to extend use of hydraulic components
6: Adopt Rexroth joint venture brand valve group
Adopt connect motor with pump directly to ensure 100% concentricity and extend use of pump
8 Chamber size and bale size can be customized as clients demands
9: Using unique design which main cylinder stroke extended 100-200 mm
10: All electric wire of HUAKE automatic scrap metal balers were put into steel pipe, which avoid being cutting by scrap
11 For maintenance convenience machine use flange connection between steel pipe and hydraulic hose
