Product Details
Place of Origin: china
Brand Name: HUAKE
Certification: CE SGS
Model Number: Y81-125
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 35-40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300sets Per Year
Model NO.: |
Y81F-125A |
Trademark: |
HUAKE |
Transport Package: |
Nude Packing With Film |
Specification: |
Y81-125A |
Origin: |
China |
Port: |
Shanghai, China |
Main Cyl.Force: |
125 Tons |
Press Box Size: |
1100X700X550mm |
Bale Size: |
200X200 Octagon 140 Octagon 200 Mm |
Bale Weight: |
15-35kg |
Motor: |
15 Kw |
Certification: |
Ce SGS |
Model NO.: |
Y81F-125A |
Trademark: |
HUAKE |
Transport Package: |
Nude Packing With Film |
Specification: |
Y81-125A |
Origin: |
China |
Port: |
Shanghai, China |
Main Cyl.Force: |
125 Tons |
Press Box Size: |
1100X700X550mm |
Bale Size: |
200X200 Octagon 140 Octagon 200 Mm |
Bale Weight: |
15-35kg |
Motor: |
15 Kw |
Certification: |
Ce SGS |
Turn-out bale discharge Series | ||||||
Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H) (mm) | Bale Weight (kg) | Production (T/h) | Power (kw) |
Y81F-63 | 630 | 1000*600*500 | 200*200 | 20~25 | 0.9~1.1 | 7.5 |
Y81F-100 | 1000 | 1000*700*550 | 250*250 | 45~55 | 1.1~1.3 | 11 |
Y81F-125A | 1250 | 1200*700*600 | 300*300 | 60~80 | 1.2~1.5 | 15 |
Y81F-125A1 | 1250 | 1200*800*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
Y81F-125A2 | 1250 | 1200*900*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
Y81F-125B | 1250 | 1200*700*600 | 250*250 | 45~60 | 1.2~1.5 | 15 |
Y81F-125B1 | 1250 | 1200*800*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
Y81F-125B2 | 1250 | 1200*900*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
Y81F-125AD | 1250 | 1400*800*700 | 300*300 | 65~80 | 1.5~2.0 | 18.5 |
Y81F-160 | 1600 | 1400*900*700 | 320*320 | 80~110 | 2.2~3.0 | 22 |
Y81F-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 22 |
Y81F-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.6~3.9 | 15*2 |
Y81F-200 | 2000 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 37 |
Y81F-200A | 2000 | 1600*1200*800 | 400*400 | 130~180 | 2.8~3.9 | 37 |
Y81F-200B | 2000 | 1800*1400*800 | 450*450 | 130~180 | 2.8~3.9 | 37 |
Y81F-250A | 2500 | 2000*1400*900 | 500*500 | 190~280 | 3.5~5.0 | 22*2 |
Y81F-250B | 2500 | 2000*1750*1000 | 500*500 | 200~380 | 4.0~6.5 | 22*2 |
Y81F-250BKC | 2500 | 2000*1750*1000 | 450*450 | 160~250 | 3.2~4.5 | 22*2 |
Y81F-315 | 3150 | 2500*2000*1200 | 600*600 | 250~650 | 4.5~7.0 | 45*2 |
Y81F-400 | 4000 | 3500*2000*1200 | 500*600 | 45*2 | ||
Y81F-500 | 5000 | 3000*2500*1200 | 600*700 | 55*2 | ||
Side Push-out bale discharge Series | ||||||
Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size(W*H)(mm) | Bale Weight(kg) | Production(T/h) | Power (kw) |
Y81T-63 | 630 | 1000*600*500 | 200*200 | 28~35 | 0.9~1.1 | 7.5 |
Y81T-100 | 1000 | 1000*700*550 | 230*230 | 42~53 | 1.2~1.5 | 11 |
Y81T-125A | 1250 | 1200*700*600 | 300*300 | 65~80 | 1.2~1.8 | 15 |
Y81T-125B | 1250 | 1200*700*600 | 250*250 | 50~62 | 1.2~1.5 | 15 |
Y81T-125AD | 1250 | 1400*800*700 | 300*300 | 18.5 | ||
Y81T-160 | 1600 | 1400*900*700 | 320*320 | 70~85 | 1.5~2.2 | 22 |
Y81T-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.0~3.5 | 22 |
Y81T-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.0~4.0 | 15*2 |
Y81T-200A | 2000 | 1600*1200*800 | 450*450 | 140~190 | 2.5~4.5 | 37 |
Y81T-200B | 2000 | 1800*1400*900 | 450*450 | 210~300 | 3.0~5.0 | 22*2 |
Y81T-250A | 2500 | 2000*1400*1000 | 500*500 | 230~270 | 4.0~6.3 | 22*2 |
Y81T-250B | 2500 | 2000*1750*1000 | 500*500 | 250~280 | 5.0~6.3 | 22*2 |
Y81T-315A | 3150 | 2000*1400*1000 | 500*500 | 250~360 | 4.0~6.5 | 37*2 |
Y81T-315B | 3150 | 2000*1750*1000 | 500*500 | 260~370 | 5.0~7.0 | 37*2 |
Y81T-400 | 4000 | 3000*2000*1200 | 500*600 | 250~380 | 6.0~8.0 | 45*2 |
Y81T-500R | 5000 | 2500*1300*800 | 500*500 | 300~500 | 6.0~10.0 | 22+37 |
Forward-out bale discharge Series | ||||||
Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H)(mm) | Bale Weight (kg) | Production(T/h) | Power (kw) |
Y81Q-100 | 1000 | 1100*600*550 | 600*220 | 40~60 | 1.0~1.8 | 7.5 |
Y81Q-135A | 1350 | 1400*600*600 | 600*240 | 50~75 | 1.5~2.8 | 22 |
Y81Q-135B | 1350 | 1100*600*600 | 600*240 | 45~65 | 1.2~1.7 | 15 |
Y81Q-160 | 1600 | 1600*800*600 | 800*280 | 60~90 | 2.0~3.0 | 22 |
Y81Q-200 | 2000 | 1600*800*700 | 800*280 | 90~110 | 2.5~3.5 | 30 |
Y81Q-250 | 2500 | 1750*900*800 | 900*350 | 110~130 | 4.5~6.0 | 22*2 |
Packaging & Delivery
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D)Electrical motor, diesel engine or generator for power.
Applications:

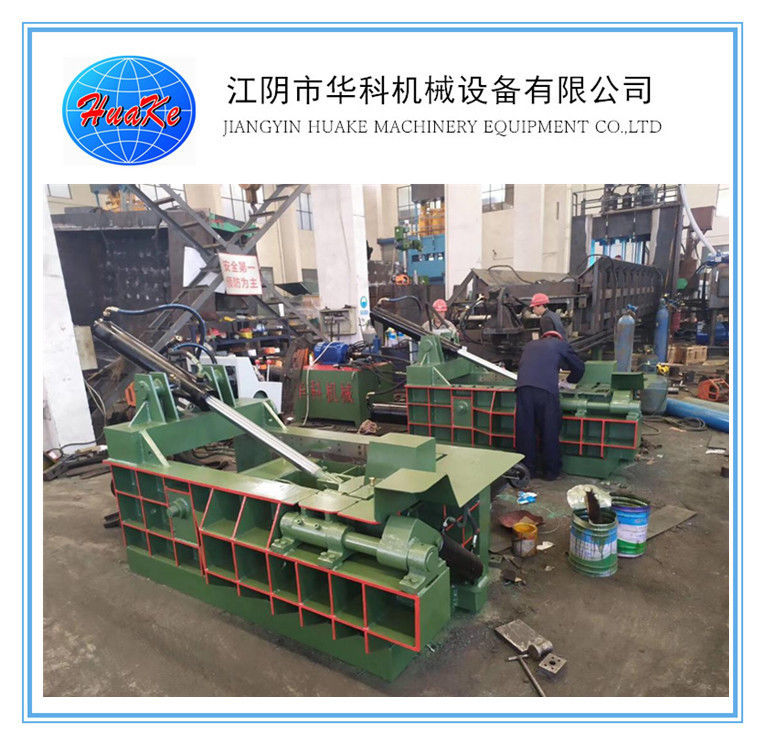

Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)Into acceptable furnace charges in shape of cuboids, cylinders & octagons
1. We have installed the guardboard on the gate to make the machine stronger and wear resistant, and extend the machine service life.
2. We use blades on the door sizes and feed box sides. The blade can cur extra scrap when machine working better to protect the machine.
3. We use high pressure soft oil pipe,which has better stability ,and anti- vibration protection.
4. Our machine has buffer technology to reduce the impact on machine parts.
Question and answers:
Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2. Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3. Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4. Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.53 , Yungu Road, Jiangyin City, Jiangsu Province, China.
5. Q: Can we order one set machine?
A:Yes, you can.
we are close to 20 years experienced manufacturer of scrap metal baler , scrap metal shear ,scrap metal cursher machine.
can offer good quality machine and excellent asfter sale service.
METAL BALER CHARACTERISTIC
1. The hydraulic driving is adopted for the machine
2. The manual or PLC automatic control operations.
3. Installation does not need the foundation screw
4. Can choose diesel engine drive or motor driv
5. Three out- bag ways: Turn, Side push, front push.
6. The chamber box size and bale size can according to the customer request.
7, Voltage/frequency can according to customer requirement.
8, Can add two sides of knives and teeth on the chamber box
9. Can be equipped with cooler or heater
Superiorty
We company professionally manufacture hydraulic balers and shears for more than 20 years, with certificates of, CE, SGS,
Our company locates at shangshou town jiangyin Jiangsu City, near Shanghai, we are factory with strict quality control team.
We insist on the enterprise concepts of good faith, excellence, innovation and development, welcome your coming !
