Home > products > Metal Briquette Press > Y83 Series Metal Briquette Press , Metal Scrap Briquetting Machine

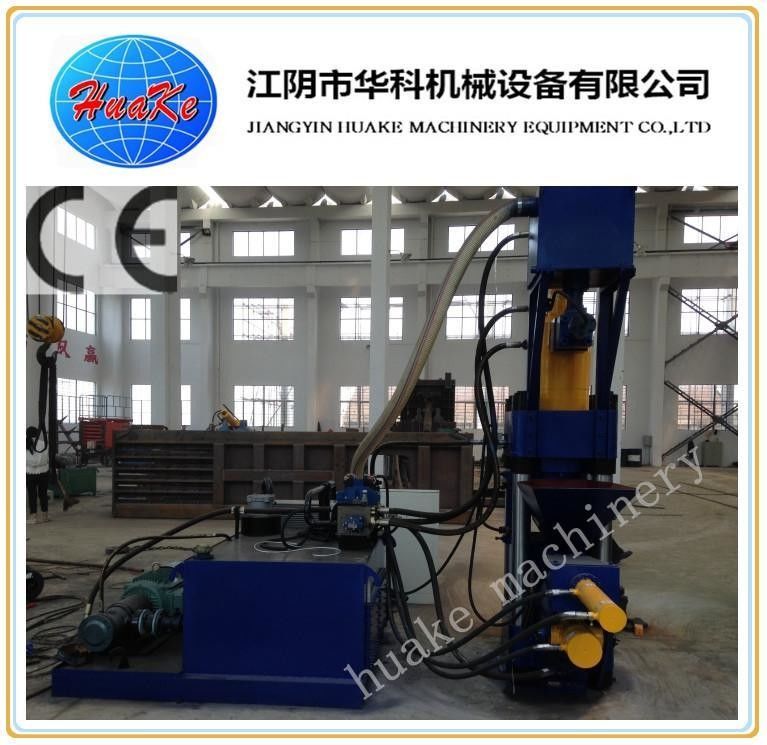

Y83 Series Metal Briquette Press , Metal Scrap Briquetting Machine

Product Details

Payment & Shipping Terms

Payment Terms: L/C, T/T

Supply Ability: 200PCS Per Year

Get Best Price
Highlight:

Y83 Metal Briquette Press

,

1300kg/h Metal Briquette Press

,

OEM metal scrap briquetting machine

Model NO.:
Y83-500
HS Code:
84629190
Port:
Shanghai, China
Usage:
Press The Metal Filings And Others
Transport Package:
Nude Packing Or User Defined
Specification:
SGS
Trademark:
Huake
Origin:
China
Model NO.:
Y83-500
HS Code:
84629190
Port:
Shanghai, China
Usage:
Press The Metal Filings And Others
Transport Package:
Nude Packing Or User Defined
Specification:
SGS
Trademark:
Huake
Origin:
China
Y83 Series Metal Briquette Press , Metal Scrap Briquetting Machine

Y83 Series Scrap Metal Briqueting Press Machine

Quick Details

Condition: New
CNC or Not: Normal
Power Source: Hydraulic
Place of Origin: China (Mainland)
Brand Name: Huake
Function: Metal recovering and recycling.
Service: The machine are always tested and assembled before shipping, customer only need to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come to fix.
Model Number: Y83-500
Color: User Defined



Model Cyl.Force
(kN)
Press Mould
(mm)
Pressure on Briquet(Mpa) Briquet Size
(mm)
Production Rate
(kg/hr)
Motor
(kW)
Y83-250 2000+550 Φ 110x180 263 Φ 110x(50-70) 800-900 18.5
Φ 120x180 221 Φ 120x(50-70)
Y83-315 2850+550 Φ 120x180 278 Φ 120x(50-70) 900-1100 22
Φ 140x180 204 Φ 140x(50-70)
Y83-400 3450+550 Φ 125x300 326 Φ 125x(70-100) 1200-1300 30/37
Φ 140x300 260 Φ 140x(70-100)
Y83-500 4900+600 Φ 150x300 283 Φ 150x(70-100) 1300-1800 30/45
Φ 180x300 196 Φ 180x(70-100)


Features:
1 Hydraulic drive, operation stable, no vibration, safe&reliable.
2 Simple foundation needed.


Application:
Y83 series metal press block hydraulic machine (Chip packing machine) is suitable for the aluminum alloy factory, steel casting factory, aluminum casting factory, copper casting factory, etc. To compress and pack the aluminum chip, steel chip, iron chip and copper chips for melting down. It can replace the waste steel, pig iron, aluminum ingot and waste copper as row materials and reduce the fire loss. This equipment can press coldly the cast iron chip, steel chip, copper chip and aluminum chip into 3~6 kg cylinder caky blocks, easy for transportation, furnace casting, during the whole course of which, the temperature adding and the additive or other craftwork are not needed. After the iron chip has been pressed, the densities reach 5~6T/m3. The machine can also adopt the domestic and imported hydraulic elements and electric elements fitted with the automatic feeding, weighting devices, etc. According to the customer? S requirement. The model Y83-500 metal chip press block hydraulic machine is designed for copper material, the press block density reaches over 7Y/m3, the machine is ideal to press and pack the lead and brass ideal products.

Warranty and after-sale service
1), we offer lifelong technical support and maintenance for free
2), 12 months quality guarantee with free spare parts free exchange after installation
3), 24 hours online service through e-mail, phone call, skype etc.

Packaging & Delivery
Packaging Details: Nude packing, loading container directly!
Delivery Detail: 30- 45 days



Y83 Series Scrap Metal Briqueting Press Machine

Y83 Series Scrap Metal Briqueting Press Machine
