Product Details
Place of Origin: CHINA
Brand Name: huake
Certification: CE
Model Number: QW-630
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 50000-80000
Packaging Details: water proof package ,export worthy package
Delivery Time: 40-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Year
Model NO.: |

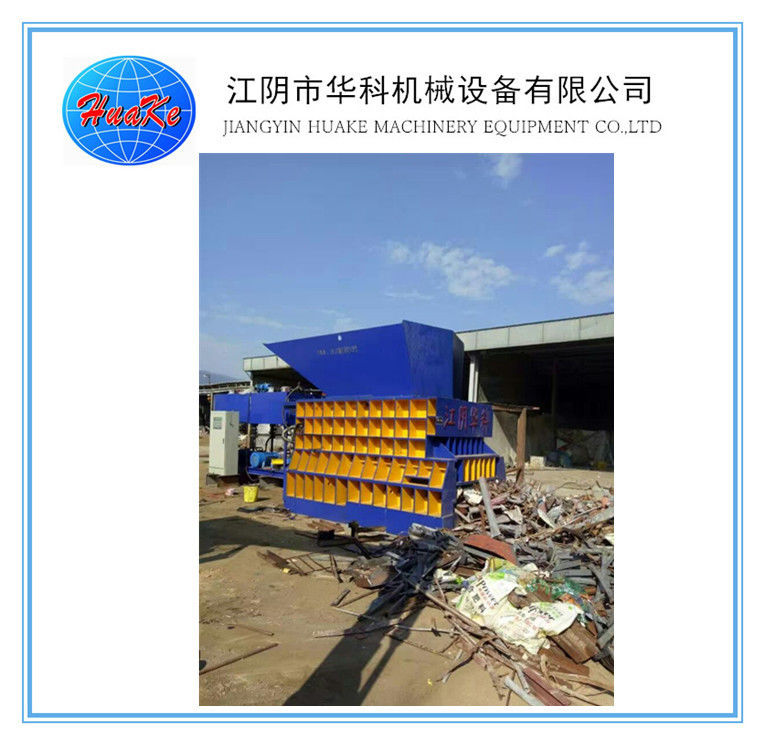

QW-630 Scrap Metal Shear |
SHEARING POWER: |
630 TONS ,AND CAN CUSTOMIZE |
Advantage: |
Cutting Speed High, Production Rate High |
HS Code: |
84629190 |
Painting: |
Anti-rust Paint |
Type: |
Scrap Metal Shear For Various Kind Of Metal Scrap |
Automation: |
Automatic, PLC Control .with Remote Control |
Function: |
To Cut Various Size Scrap Metals At High Efficiency |
Transport Package: |
Load Container Directly, Some Types Use Bulk Ship Or Flat Rack |
Guarantee: |
1 Year Guarantee And Life-long Service |
Fit For: |
Varoiusckinds Of Scrap Metal Especially Pipes |
Condition: |
New Customize Hydraulic Scrap Metal Shear |
Product Name: |
Container Type Heavy Duty Scrap Metal Shear |
Model NO.: |
QW-630 Scrap Metal Shear |
SHEARING POWER: |
630 TONS ,AND CAN CUSTOMIZE |
Advantage: |
Cutting Speed High, Production Rate High |
HS Code: |
84629190 |
Painting: |
Anti-rust Paint |
Type: |
Scrap Metal Shear For Various Kind Of Metal Scrap |
Automation: |
Automatic, PLC Control .with Remote Control |
Function: |
To Cut Various Size Scrap Metals At High Efficiency |
Transport Package: |
Load Container Directly, Some Types Use Bulk Ship Or Flat Rack |
Guarantee: |
1 Year Guarantee And Life-long Service |
Fit For: |
Varoiusckinds Of Scrap Metal Especially Pipes |
Condition: |
New Customize Hydraulic Scrap Metal Shear |
Product Name: |
Container Type Heavy Duty Scrap Metal Shear |
I. Suitable for:
It is suitable for cold shearing of light and thin materials with various cross-sectional shapes (such as color steel tiles, channel steel, steel plates, etc.) to make them meet the requirements of the charge; and is convenient for storage and transportation, and can be used for metal recycling, casting and smelting industries , Machinery construction industry and many other industry supporting services.
01 This machine adopts hydraulic transmission, which is small in size, light in weight, small in
Low pitch, stable movement, flexible operation, large cutting section, etc.Our shear has speeder, when unload, one cylinder will drive the main shearing cylinder to move, with more than 50% faster speed, save more than 30% time.
02 It adopts the integrated control of machine, hydraulic and electricity, which can realize the conversion of single and continuous action. It is simple and convenient to use.
Stop and run working position, easy to realize overload protection
03 The electrical appliances are controlled by PLC, with reliable performance; and automatic lubrication is used to lubricate the spindle intermittently, which is beneficial to extend
Service life of equipment
04 It has a wide range of applications, which can be used as processing equipment for metal recycling and processing units, and as a charge for factory casting workshops Metal cutting processing equipment for processing and mechanical construction industry
05. Using international imported accessories and materials, compact internal structure, high quality, high efficiency and low energy consumption;
06 Fully enclosed feeding, high safety performance. Use super large feeding port to feed enough materials;
07. PLC automatic fast cutting, unmanned operation, low cost and high efficiency;
08. Low cutting material restriction and wide range of material delivery. Uninterrupted feeding and continuous cutting;
III. PRODUCT PARAMTERS
CONTAINER TYPE SHEAR FOR CUTTING SCRAP METALS
Contact us! We would like to tell you more about our shearing system.
| Item No. | PARAMETERS | REMARKS | |||||||||
| 1 | SHEARING CYLINDER | Model | YG340/220-870 | Travel length | 870mm | 250tons *2=500 tons | |||||
| Nominal Thrust |
2500X2kN | Quantity | 2 | ||||||||
| 2 | MATERIAL HOLDING CYLINDER | Model | YG240/160-890 | Travel length | 890mm | 125tons pressure | |||||
| Nominal Thrust |
1320KN | Quantity | 1 | ||||||||
| 4 | Material Box Dimension(L×W×H) | 2200×1400×400 mm | |||||||||
| 5 | Hydraulic system working pressure | 25MPa | |||||||||
| 6 | Hopper size | 2200X1400(mm) | |||||||||
| 7 | Cutting length/maximum holdling range | 1400mm / 450mm | |||||||||
| 8 | Total power | 75kW | |||||||||
| 9 | Power specification | 380V/3PH,50Hz | |||||||||
| 10 | Cutting angle | V shape+9 degrees | |||||||||
| 13 | maximum cutting range Δb≤450Mpa |
Round steel:φ150mm | FROM MIDDLE PISITION OF THE BLADES | ||||||||
| Square steel bar:100×100mm | |||||||||||
| Steel plate:40×600mm | |||||||||||
| 14 | Shearing frequency | 2-3times/minute | |||||||||
| 16 | Machine outer size | 6000×2220×3550mm | |||||||||
| 18 | Oil tank volume | 3500 litres | |||||||||
| 20 | Electric Motor | Model | Y225M-6 | Rated power | 45 +30KW | ||||||
| Rated speed | 970 rpm | Quantity | 1+1 | ||||||||
| 21 | Hydraulic pump | Model | HY250/YCY160 | Rated Pressure | 31.5MPa | ||||||
| Nominal Displacement |
250ml/r/160ml/r | Quantity | 1+1 | ||||||||
IV. product vedio on youtube:
To achieve the purpose of reducing land occupation, reducing total energy consumption in society, saving investment, protecting the ecological environment, and improving labor productivity. . It is mainly aimed at shredding super-large, super-thick and difficult-to-shred materials, and reduces the size of the material through shearing and squeezing. It has the characteristics of wide application range, low energy consumption and high output.
