Product Details
Place of Origin: china
Brand Name: HUAKE
Certification: CE
Model Number: Q91-800
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: 100000-150000 USD
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 60 DAYS
Automatic Grade: |
Automatic Plc Control , Touch Screen Set Length .easy Contrrol |
Driven Type: |
Hydraulic Driven |
After-sales Service Provided: |
Engineers Available To Service24 Hours On Line , And Enigeer Can Come To Site |
Application: |
Scrap Metal Recycling Yard, Steel Plant, Aluminium Plant, Copper Plant |
Name: |
Q91-800 800 TONS POWER SCRAP SHEAR / Heavy-Duty Scrap Metal Shears |
Warranty: |
12 Months |
Usage: |
FOR CUTTING VARUOIS SHAPE HEAY STEELS TO SMALLER SIZES SO THAT IT CAN BE TRANSPORTED AND PUT INTO FURANANCE EASILY |
Function: |
Easy For Transport And Reduce Smelt Cost |
Advantage: |
Very High Production Rate, Very Easy Opearation , Is A Very Ideal Solution For Heavy Metal Materials |
Delivery Date: |
50 -70 Days |
Paint: |
Cutmoized Color, With Anti Dust Paint |
Production Efficieny: |
100 Tons-120 Tons Per Day |
Automatic Grade: |
Automatic Plc Control , Touch Screen Set Length .easy Contrrol |
Driven Type: |
Hydraulic Driven |
After-sales Service Provided: |
Engineers Available To Service24 Hours On Line , And Enigeer Can Come To Site |
Application: |
Scrap Metal Recycling Yard, Steel Plant, Aluminium Plant, Copper Plant |
Name: |
Q91-800 800 TONS POWER SCRAP SHEAR / Heavy-Duty Scrap Metal Shears |
Warranty: |
12 Months |
Usage: |
FOR CUTTING VARUOIS SHAPE HEAY STEELS TO SMALLER SIZES SO THAT IT CAN BE TRANSPORTED AND PUT INTO FURANANCE EASILY |
Function: |
Easy For Transport And Reduce Smelt Cost |
Advantage: |
Very High Production Rate, Very Easy Opearation , Is A Very Ideal Solution For Heavy Metal Materials |
Delivery Date: |
50 -70 Days |
Paint: |
Cutmoized Color, With Anti Dust Paint |
Production Efficieny: |
100 Tons-120 Tons Per Day |

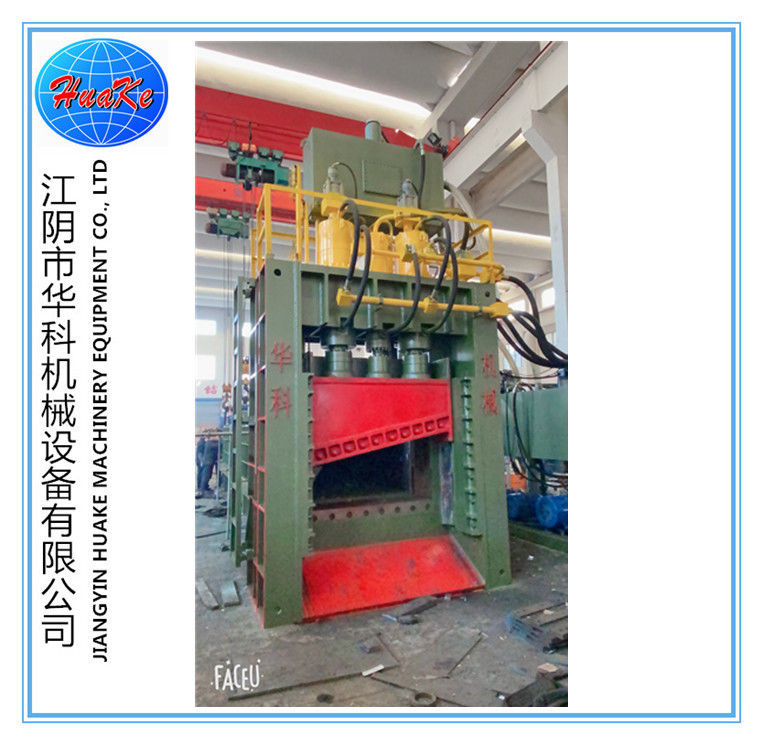

Q91-800 800 TONS POWER GANTRY SHEAR /SCRAP SHEAR
PARAMTERS IN DETAILS
1) Application
This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.
(2) Characteristics
a. This machine adopts the upper compression scrap shaping and segment feeding mode. In addition, it is designed for wide and large Material cabinet. It has good adaptability to various kinds of scrap steel materials. The scrap steel after shearing has high compactness.
b. Machine, electricity, hydraulic system, integrated control, easy to learn, intuitive operation, convenient
c. Adopt PLC control. High reliability and easy maintenance
d. Each moving part is driven by hydraulic pressure. It works smoothly. The shearing force is strong. The efficiency is high
Q91Y-800W HEAVY DUTY GANTRY SHEAR PARAMETERS
| ITEM NO. | PARAMETERS | remarks | |||||||||
| 1 | SHEARING CYLINDER | MODEL NO. | YG450/300-950 |
400*2 =800 TONS POWER |
|||||||
| MAXIMUM THRUST | 4500KNX2 | QUANTITY | 2sets | ||||||||
| 2 | CLAMPING CYLINDER | MODEL NO. | YG240/160-1000 |
125*2=250TONS POWER |
|||||||
| MAXIMUM THRUST | 1250KNX2 | QUANTITY | 2 sets | ||||||||
| 3 | ENHANCING SPEED UP CYLINDER | MODEL NO. | YG220/160 | 100 TONS POWER | |||||||
| MAXIMUM THRUST | 1000kN | QUANTITY | 1set | ||||||||
| 4 | MATERIAL PUSH CYLINDER | MODEL NO. | YG240/180 | 125 TONS POWER | |||||||
| MAXIMUM THRUST | 1250kN | QUANTITY | 1set | ||||||||
| 5 | MATERIAL BOX SIZE (L W H) | 8000×1800×900 mm | |||||||||
| 6 | HYDRAULIC SYSTEM PRESSURE | 25MPa | |||||||||
| 7 |
SHEARING BALDE LENGTH MINIMUM OPEN HEIGHT |
1800mm/580mm | |||||||||
| 8 | MAXIMUM CLAMPIG HEIGHT | 630mm / 1000mm | |||||||||
| 9 | Total Power | 176KW | |||||||||
| 10 | Power Spec | 380V/3PH,50Hz OR CUSOMIZE | |||||||||
| 11 | Shearing angle | 11 degrees | |||||||||
| 12 | MATERIAL PUSHING METHOD | ||||||||||
|
Back cylinder push
|
Length adjustable by your self There is a length control system on machine Speed 230mm/second
|
||||||||||
| CYLINDER DETAIL | YG240/180 CYLINDER FORCE 1250 KN=125TONS POWER | ||||||||||
| 13 | Shearing width | 1800㎜ | |||||||||
| 14 |
maximum shearing capacityΔb≤450Mpa
|
Round steel:φ150mm |
In the middle of the blade |
||||||||
| Square steel:130×130mm | |||||||||||
| Steel plate:70×600mm | |||||||||||
| 15 | Shearing frequency(empty load) | 3-4 times/minute | |||||||||
| 16 | Electromotor | Model | YX3-250M-4 | Rated power | 55KW | ||||||
| Rated speed | 1480 rpm | Quantity | 3setst | ||||||||
| 17 | Hydraulic pump | Model | HY250 | Rated Pressure | 31.5MPa | ||||||
|
Nominal Displacement |
250ml/r | Quantity | 3 sets | ||||||||
|
18
|
Cooling circulating pump | Model | 2CY-24/6.3-1 | Rated speed | 11Kw | ||||||
|
Nominal Displacement |
400L/min | Quantity | 1450 rpm | ||||||||
| Nominal pressure | 6.3MPa | Power | 1set | ||||||||
| WATER COOLER | MODEL | GLC-21 | COOLING AREA | 21 SQAURE METERS | |||||||
| 19 | MACHINE WEIGHT | Around 80 tons | |||||||||
| 20 | Production effciiency | Conservatively estimate 10 tons per hour | |||||||||
Features
1) PLC, equipped with remote control.
2) Hydraulic motor pushing.
3) Customized feed box size& Blade length.
4) Complete technical services.
After-sell service
1) One year guarantee and lifelong maintenance.
2) Spare parts: supply one set of spare parts for free, tool box, operation book.
3) Any problem, you can get our vedio guide easily
4) 24 hour response
5) guiding vedio and technical support
Product Pictures
suitable for materials like
Technical Specification
| Model | Q91Y-800 |
| Max Cutting Force( ton) | 800 |
| Press Box Size( mm) | 8000*1900*1200 or customize |
| Blade Length( mm) | 2000 |
| Cutting Frequency( times/min) | 3-4 times per minute |
| Cutting Specifications( mm) | 600mm |
MACHINE VEDIO ON YOUTUBE :
https://youtube.com/shorts/HIf-4W2Nx3s?feature=share
other modes for choice :
our plant
Jiangyin huake Machinery equipment co .,ltd has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinesemanufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap metal baler, scrap metal shear, and scrap metal cursher and shredder
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our huake brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. and we hae CE CERTIFICATES
welcome to send inquiry with us.
We believe customer satisfaction is what we are most enthusiastic about.We are not selling a single machine,we are selling an idea that every business with us is not one time business,we will have your favorable feedback and make more business under your help.Helping each other is the best way to upgrow.
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2005.
2. Where is your factory located?
Our factory address is : Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.
6. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well
10. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book
The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
