Product Details
Place of Origin: china
Brand Name: HUAKE
Certification: CE
Model Number: Q91Y-1000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: export worthy water proof dust proof corrosion proof package
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Year
Model NO.: |
Q91Y-1000 |
Function: |
Can Cut All Metal, Automobile Shells, Stainless Steel SS,HMS 1,HMS2 P&S |
MATERIAL BOX LENGTH: |
8METER OR 1O METER OR 12 METER FOR CHOICW |
SPERATION: |
PLC CONTROL REMOTE CONTROL, TOUCH SCREEN STATUS MONITER AND TROUBLE SHOOTING |
Advantage: |
Easy Instllation, High Productivity,long Service Life, Cut Very Heavy Materials . Require Minimal Insfrastrucrure |
Shearing Length: |
Easily Adjustable By User On The Touch Screen Of Machine Control Panel |
Labor Rqyuirmemt: |
1 Operator Can Control At The Same Tim The Grapple ,because Machine Is Remot Contol Good 100 Meter Range |
Why Choose This: |
It Gives You A Quick Solution For Sized Materials To Be Reverted Into Furnance Charge Size |
Why Choose It: |
It Is 3 Machines In 1 |
Why Choose: |
Durable Construction And Design Can Serve You Long And Well |
Model NO.: |
Q91Y-1000 |
Function: |
Can Cut All Metal, Automobile Shells, Stainless Steel SS,HMS 1,HMS2 P&S |
MATERIAL BOX LENGTH: |
8METER OR 1O METER OR 12 METER FOR CHOICW |
SPERATION: |
PLC CONTROL REMOTE CONTROL, TOUCH SCREEN STATUS MONITER AND TROUBLE SHOOTING |
Advantage: |
Easy Instllation, High Productivity,long Service Life, Cut Very Heavy Materials . Require Minimal Insfrastrucrure |
Shearing Length: |
Easily Adjustable By User On The Touch Screen Of Machine Control Panel |
Labor Rqyuirmemt: |
1 Operator Can Control At The Same Tim The Grapple ,because Machine Is Remot Contol Good 100 Meter Range |
Why Choose This: |
It Gives You A Quick Solution For Sized Materials To Be Reverted Into Furnance Charge Size |
Why Choose It: |
It Is 3 Machines In 1 |
Why Choose: |
Durable Construction And Design Can Serve You Long And Well |

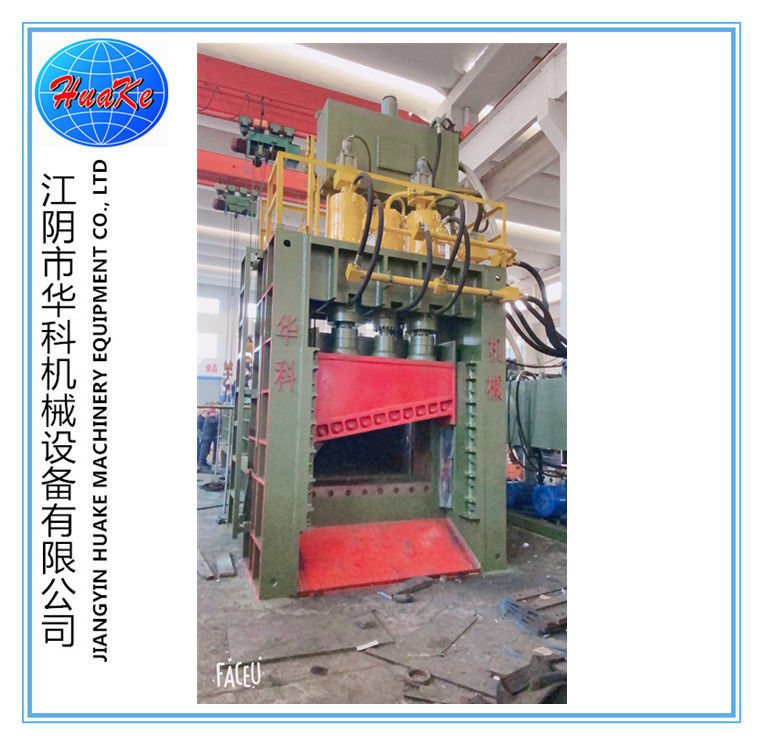

1000 Ton china scrap car shear/ scrap shear /scrap car body shear
product paraters :
Jiangyin Huake Machinery Equipment Co., Ltd.
Main technical parameters of Q91-Y1000W
hydraulic scrap shearing machine
| Item | Parameters | Remarks | |||||||||
|
1 |
shear cylinder |
Model | YG480/340-950 | Travel length | 950 mm |
920tons power |
|||||
| Maximum thrust | 4600KNX2 | Quantity | 2 sets | ||||||||
|
2 |
Clamp cylinder |
Model | YG240/160-1000 | Travel length | 1000mm |
250 tons power |
|||||
| Maximum thrust | 1250KNX2 | Quantity | 2 sets | ||||||||
|
3 |
Fast cut cylinder |
Model | YG280/160-950 | Travel length | 950mm |
160 tons power |
|||||
| Maximum thrust | 1600KNX1 | Quantity | 1 set | ||||||||
|
4 |
Cover door cylinder |
Model | YG180/125-1200 | Travel length | 1200mm |
189tons power |
|||||
| Maximum thrust | 630KNX3 | Quantity | 3 sets | ||||||||
|
5 |
Material push cylinder |
Model | YG260/180-7500 | Travel length | 7500mm |
132 tons power |
|||||
| Maximum thrust | 1320KN | Quantity | 1 set | ||||||||
| 6 | Material box size (length × width × height) | 8000×2000×900 mm | |||||||||
| 7 | hydraulic system working pressure | 23MPa | |||||||||
| 8 | Shear Knife Length/Minimum Shear Opening | 1900mm/580mm | |||||||||
| 9 | Material clamp length/Maximum clamp opening | 630mm / 1000mm | |||||||||
| 10 | total equipment power | 180kW | |||||||||
| 11 | shear angle | 11 degrees | |||||||||
| 12 | Pushing form / Pushing speed | Cylinder push / 300mm/second | |||||||||
|
13 |
maximum shear rangeΔb≤450Mpa | Round steel: φ150mm |
Blade middle position |
||||||||
| Square steel: 120×120mm | |||||||||||
| Steel plate: 80×600mm | |||||||||||
| 14 | Number of cuts (empty load) | 3-4 times/minute | |||||||||
|
15 |
motor |
Modle number | YE225M-4 | Rated power | 45KW | ||||||
| Nominal thrust | 1470 rpm | Quantity | 4 sets | ||||||||
|
16 |
Hyadulic pump |
Modle number | A4V-250 | Nominal pressure | 31.5MPa | ||||||
| Nominal displacement | 250ml/r | quantity | 4 sets | ||||||||
|
18 |
Oil cooling circulating pump |
Modle number | 2CY-24/6.3-1 | Power | 11Kw | ||||||
| Nominal displacement | 400L/min | Turning speed | 1450 rpm | ||||||||
| Nominal pressure | 6.3MPa | Quantity | 1 set | ||||||||
Product Description
(1) Application
This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.
(2) Characteristics
a. This machine adopts the upper compression scrap shaping and segment feeding mode. In addition, it is designed for wide and large Material cabinet. It has good adaptability to various kinds of scrap steel materials. The scrap steel after shearing has high compactness.
b. Machine, electricity, hydraulic system, integrated control, easy to learn, intuitive operation, convenient
c. Adopt PLC control. High reliability and easy maintenance
d. Each moving part is driven by hydraulic pressure. It works smoothly. The shearing force is strong. The efficiency is high
|
https://youtu.be/MQG-SFiCpJk
Warranty and after-sale service
we have technicians online 24 hours to help ypu diagnose the problem if any. we value very much the satisfaction of our customers machine is well tested and preasjusted before dispactth, they can work very stable after installation. 20 years of experience and technolohy know -how , enables us to solve all the problems in a very fast manner . besides we
Quick Details
other popular shearing machines people are buying :
1. Are you a manufacturer, trading company or a third party? We are a manufacturer, and we have built up our company since 2005.
2. Where is your factory located? Our factory address is : Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory? Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me? It's always my pleasure.
5. What is your minimum order quantity, can you send me samples? Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.
6. What is the delivery time of your machine? In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo? Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won't be broken? Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well
10. May i know which payment will be accepted by your company? So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time? The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present? All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
We believe customer satisfaction is what we are most enthusiastic about.We are not selling a single machine,we are selling an idea that every business with us is not one time business,we will have your favorable feedback and make more business under your help.Helping each other is the best way to upgrow. |
