7 Meter Feed Box Scrap Steel Shear with 1600MM Cutting Blade and 655TONS Shearing Force

Brand Name: HUAKE
Model Number: q91y-630w
MOQ: 1 SET
Price: BY NEGOTIATION
Delivery Time: 85 DAYS
Detail Information
Place of Origin:
CHINA
Certification:
CE
The Internal Feed Box Measures:
7000 × 1600 × 900 Mm
Cutting Blade:
1600MM
PRODUCTION RATE:
9-11 T0NS PER HOUR
CUTTING LENGTH:
CAN BE SET ON TOUCH SCREEN BY YOUR SELF
SHEARING FORCE:
655TONS POWER
Minimum Shear Opening Height:
550MM
Total Installed Power:
137.2 KW
Control System:
PLC Control And Remote Operation
Empty-load Shearing Frequency:
3–4 Times/minute
Packaging Details:
EXPORT WORTHY PACKAGE
Supply Ability:
200 SETS PER YEAR
Highlight:

7 meter scrap steel shear

,

feed box ferrous waste cutter

,

oversized scrap metal cutting machine

Product Description

7 Meter Feed Box Scrap Steel Shear for Long and Oversized Ferrous Waste

SEO Title: 7-Meter Feed Box Scrap Steel Shear for Long Ferrous Waste
Meta Description: Process long and oversized steel scrap with a 7000 × 1600 × 900mm feed box, hydraulic rear pusher, and 1600mm cutting blade.

Designed Around Long Scrap Handling

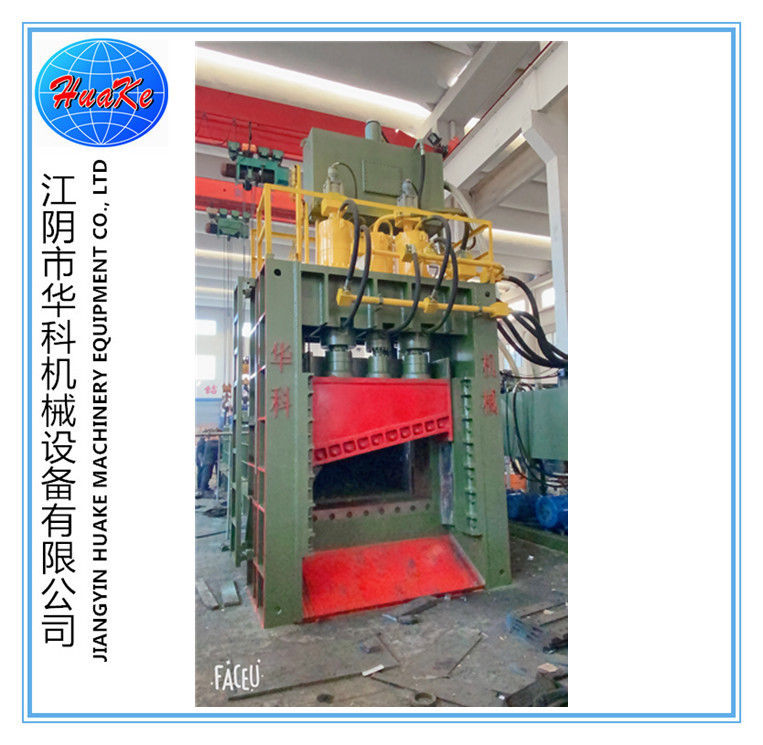

The Q91Y-630W scrap steel shear with a 7-meter feed box is developed for recycling operations that regularly receive materials too long for small shears or compact cutting chambers.

Its internal material box measures:

7000 × 1600 × 900mm

This large loading space allows long steel scrap to be placed inside the machine and progressively moved toward the cutting area. It is suitable for facilities handling production remnants, structural scrap, demolition material, plate strips, and long steel sections.

Reducing the Need for Preliminary Cutting

Long scrap often creates handling difficulties before it reaches the recycling process. Oversized materials may occupy excessive yard space, extend beyond truck bodies, or require repeated flame cutting before loading.

A 7000mm feed box allows many long materials to enter the machine without being divided into several short pieces in advance.

Typical applications include:

  • Steel fabrication offcuts
  • Long plate-edge scrap
  • Structural steel sections
  • Round and square bars
  • Steel mill production ends
  • Demolition steel
  • Mixed heavy ferrous waste

Material must still fit within the box width and height and remain within the machine’s cutting limits.

Matching the Feed Box to the Cutting Chamber

A large feed box is useful only when the machine can control and position the material effectively.

The Q91Y-630W uses a rear hydraulic pusher with:

  • 7000mm cylinder stroke
  • Approximately 135 tons of pushing force
  • 300mm/s documented pushing speed
  • Adjustable feeding length
  • Integrated length-control system

The pusher moves the material toward the blade in stages. This supports repeated cutting without requiring the operator to reload every remaining section after each stroke.

Wide Cutting Area

The machine has a 1600mm blade length and 1600mm shearing width. The specified minimum shear opening height is 550mm.

This cutting area provides room for irregularly shaped steel scrap and multiple smaller sections, although the actual cutting capacity depends on material grade, cross-section, blade position, and loading arrangement.

Reference Material Capacity

For steel with tensile strength not exceeding 450MPa, the technical specification lists the following reference capacities:

Material Reference size
Round steel Ø130mm
Square steel 120 × 120mm
Steel plate 60 × 600mm

These values should be used as technical references, not as unconditional limits for every steel grade.

Where This Machine Fits

The 7-meter feed-box configuration can be used by:

  • Scrap recycling yards
  • Steel service centers
  • Heavy fabrication plants
  • Steel mills
  • Foundries
  • Demolition-material processors
  • Industrial waste recovery companies

For the best recommendation, customers should provide material photos, maximum incoming length, width, height, steel grade, and required output size. The feed box should be evaluated together with the cutting force and material cross-section, rather than selected only according to length.
