250T Scrap Metal Cutting Machine , Iron Cutting Machine

Product Details

Place of Origin: china

Brand Name: HUAKE

Certification: CE SGS

Model Number: Q43-250

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: 8000-30000usd

Packaging Details: EXPORT WORTHY PACKAGE

Delivery Time: 30-5o days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200PCS Per Year

Get Best Price
Highlight:

250T scrap metal cutting machine

,

2500KN scrap metal cutting machine

,

scrap Iron Cutting Machine

Model NO.:
Q43-250
Cutting Force:
2500KN OR 250 Tons
Port:
Shanghai, China
Transport Package:
Export Worthy Packahge
Function:
To Cuts Scrap Metal Of Different Size And Thickness, Rebars , Steel Playte, Rebarssteelpipe
Trademark:
HUAKE
Operation:
PLC Control ,remote Control , Foot Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Condition:
New
Warranty:
1 Year
Power Specification:
Customize
Other Name:
Alliagtor Shear, Scrap Steel Cutting Machine, Scrap Cutting Shear
Model NO.:
Q43-250
Cutting Force:
2500KN OR 250 Tons
Port:
Shanghai, China
Transport Package:
Export Worthy Packahge
Function:
To Cuts Scrap Metal Of Different Size And Thickness, Rebars , Steel Playte, Rebarssteelpipe
Trademark:
HUAKE
Operation:
PLC Control ,remote Control , Foot Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Condition:
New
Warranty:
1 Year
Power Specification:
Customize
Other Name:
Alliagtor Shear, Scrap Steel Cutting Machine, Scrap Cutting Shear
250T Scrap Metal Cutting Machine , Iron Cutting Machine





250 Tons power Scrap metal Cutting Machine /Hydraulic scrap Alligator Shear



Application :


Q43 Series of Iron Cutting Machine is applied in recycling companies, automobile dismantling plants,smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.





typical models for choice.



Model Max.Cutting Force
(KN)
Blade length
(mm)
Max.Cutting Size
(mm)
Shearing Frequency
(times/min)
Motor
(kW)
Q43- 630 630 600 30 x 30 Φ 35 8 - 12 7.5
Q43- 1000 1000 800 35 x 35 Φ 40 8 - 12 11
Q43-1200 1200 600 40 x 40 Φ 45 8 - 12 15
Q43-1600 1600 700 45 x 45 Φ 50 6 - 10 18.5
Q43-2000 2000 800 55 x 55 Φ 63 6 - 10 22
Q43-2500 2500 1000 65 x 65 Φ 73 6 - 8 30
Q43-3150 3150 1200 80 x 80 Φ 85 6 - 8 37
Q43-4000 4000 1500 90 x 90 Φ 95 6 - 8 44
Q43-5000 5000 1600 100x100 Φ 100 6 - 8 60





Detailed parameters







Q43-2500 Hydraulic Metal Shearing Machine

ITEM PARAMETERS Remarks
1 Shearing cylinder MODEL YG220/160 TRAVEL LENGTH 400㎜
MAX FORCE 2500KN QUANTITY 1
2 Material holding Cylinder MODEL YG125/80 TRAVEL LENGTH 100㎜
MAX FORCE 384KN QUANTITY 1
3 BLADE SIZE 1000×100×50mm   2PCS L×W×H
4 Hydraulic system working pressure ≤21MPa
5 Total power of equipment 22+15kw
6 Rated pressure of oil pump 31.5MPa
7 Single cycle working time ≈8seconds
8 Power Specifications Customize
9

Electric motor



model YVF160M-4 quantity 2SETS
Rated speed 970r/min rated power 22+15kw
10 Hydraulic pump model YCY63+160 quantity 2sets
Rated flow rate 160+63r/min preset pressure 31.5MPa



MAX SHREARING CAPACITY :

ANGLE STEEL:160X160X12MM (3 pieces)

I-STEEL:250X118X10MM

CHANNEL STEEL:280X124X11.5MM

STEEL SHEET:20X700MM/40X300MM

SQUARE STEEL:63X63MM

ROUND STEEL:70 mm diameter







Quick Details
Watch The Video
Youtube: https://www.youtube.com/watch?v=5kGiF25fJbQ&feature=youtu.be


Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Model Number: Q43-630
Service : the machine are always tested and assembled  before shipping,customer only need to follow  simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Color: User Defined

Packaging & Delivery

Packaging Details: Nude packing, loading container directly!
Delivery Detail: 20-30 days


Features:
1 Hydraulic drive, simple operation&easy maintenance.
2 Options for different force&blade length.
3 No footing bolts


PICTURES






Q43 Series Hydraulic Metal Shear




Q43 Series Hydraulic Metal Shear

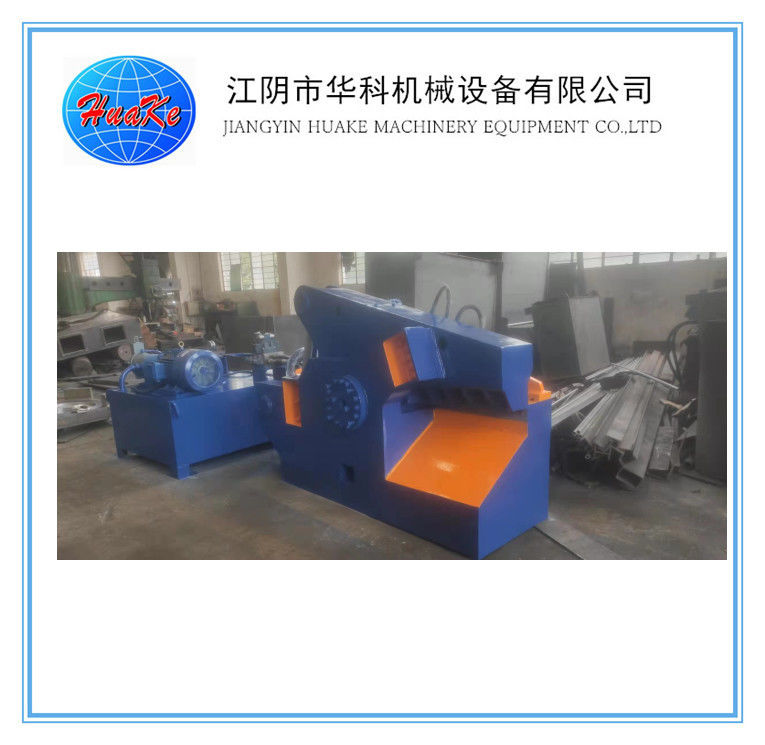

250T Scrap Metal Cutting Machine ,  Iron Cutting Machine 2
plant and  service



We have combined our own technical advantages and used years of experience to develop various Scrap Metal shearing machien (Quality Guarantee). With advanced production technology and high-quality supporting services, our products are appreciated by our customers. We carry the concept of manufacturing products in a harmonious symbiosis between people and the environment. We, with open arms, invite all interested potential buyers to visit our web-site or get in touch with us immediately for further information and facts.

customer service: 24-hour online service
pre-sale: Tailor made Technical cooperation

vedio plant tour is also highly acceptable.
