Product Description:

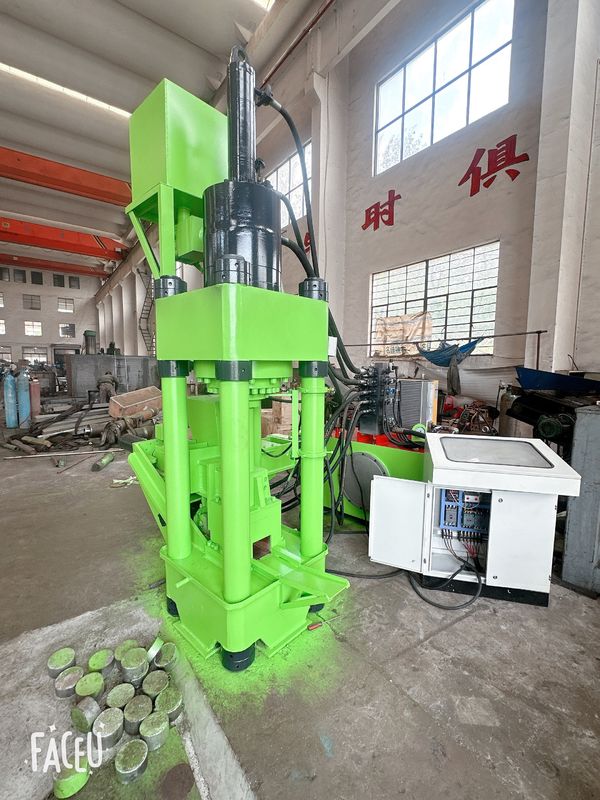

The Y83-315 Hydraulic Metal Chips Briquette Machine: A Versatile and Powerful Metalworking Equipment
The Y83-315 hydraulic metal chips briquette machine is a highly capable and versatile piece of equipment that offers several remarkable features. This machine has a power of 315 tons and is suitable for a wide range of metalworking operations, from machining to cutting and grinding of both ferrous and non-ferrous metals.
Strength
- Powerful Main Cylinder: With a model number of YG360/220 and a nominal force of 3150KN, the main cylinder is the core component of the machine providing substantial compression power. It can exert significant force to effectively compress metal chips into dense briquettes, handling a wide range of metal materials with robustness.
- Supporting Cylinders: Three additional hydraulic cylinders (enhancing cylinder, charging cylinder, and briquette pushing cylinder) play crucial roles in enhancing the overall performance of the machine, including boosting the compression effect and enabling efficient ejection of the formed briquettes.
Wide Application
- Versatile Metal Compatibility: The machine is suitable for processing various types of metal chips, whether from metalworking operations like machining, cutting, or grinding of ferrous metals such as steel and iron, or non-ferrous metals like aluminum and copper.
- Flexible Briquette Sizes: The machine has the ability to produce briquettes in the size range of (10～100)×￠100~￠120mm, making it adaptable to different processing and handling requirements.
Easy Operation
- PLC Operation Mode: The operation mode based on PLC (Programmable Logic Controller) offers a high level of automation and user-friendliness. Operators can easily set parameters, monitor the process, and control the machine through an intuitive interface.
- Quick Cycle Time: The machine has a single cycle time of about 18 seconds, allowing for rapid and continuous production of briquettes. This efficient operation improves overall work efficiency and minimizes the need for manual intervention.
Stable Use
- Reliable Hydraulic System: The hydraulic system working pressure is maintained at ＜21.0MPa, which is within a safe and stable range. Coupled with a high-quality hydraulic pump, it ensures consistent and stable performance during long hours of operation.
- Quality Electric Motor: The electric motor supplies stable power to the machine and contributes to the overall stability of the briquette machine's performance.
Advantages
- High Production Efficiency: With a production efficiency of 8 - 12 tons per 10 hours, the machine can process a significant amount of metal chips on a daily basis. It helps in reducing waste storage space and facilitating more efficient recycling or reuse of the metal materials, making it a cost-effective solution for businesses dealing with large volumes of metal waste.
- Space and Cost Savings: Compacting metal chips into briquettes reduces the volume occupied by the waste, saving storage space in factories and during transportation. Additionally, the briquetted form is often more convenient for further processing, such as melting in foundries, which can lead to cost savings in the overall metal recycling and production chain.
Good Customization Ability
- Tailored to Customer Requirements: The machine can be customized according to specific customer needs, from the size of the press box chamber to modifying the briquette size, operation parameters, or adding additional features to fit unique production workflows.
In summary, the Y83-315 hydraulic metal chips briquette machine combines strength, wide applicability, ease of operation, stable performance, significant advantages, and excellent customization options, making it an ideal choice for metal chip processing and recycling applications.
Applications:
The Metal Briquette Press is an ideal solution for metal briquette compaction in various occasions. It can be used in metal processing plants, foundries, smelting plants, and other metal processing facilities. This product is designed to provide high pressure, with a maximum press power of 315 tons. The hydraulic system working pressure is less than 21.0MPa, which ensures safe and efficient operation.
The Y83-315 model has a 30KW motor that provides the necessary power for efficient operation. This product is easy to use and maintain, making it an excellent choice for businesses that want to increase their metal processing efficiency while reducing waste.
The Metal Briquette Press is ideal for scenarios where space is limited. Its compact size makes it easy to install and operate in small spaces, without affecting its performance or efficiency. This product can be used in both manual and automatic operations, making it a versatile solution for businesses of all sizes.
In summary, the Metal Briquette Press from HUAKE is an efficient and reliable metal compactor that can be used in various industrial settings. Its compact size, high pressure, and easy maintenance make it an ideal solution for metal briquette compaction. Whether you run a metal processing plant, foundry, or smelting plant, the Y83-315 model can help you increase your metal processing efficiency while reducing waste and saving time.
Support and Services:
The Metal Briquette Press is a high-quality and durable machine designed to compact metal waste into briquettes for easy storage, transport, and recycling. It is suitable for a variety of materials, including aluminum, cast iron, copper, brass, steel, and more.
Our product technical support and services include:
- Installation and set-up guidance
- Training on how to operate and maintain the machine
- Troubleshooting and repair assistance
- Replacement parts and accessories during guarantee
- Regular maintenance and inspection guidance
- Customized solutions to meet specific customer needs
We are committed to providing excellent customer service and ensuring that our customers get the most out of their Metal Briquette Press. If you have any questions or concerns, please do not hesitate to contact us.
